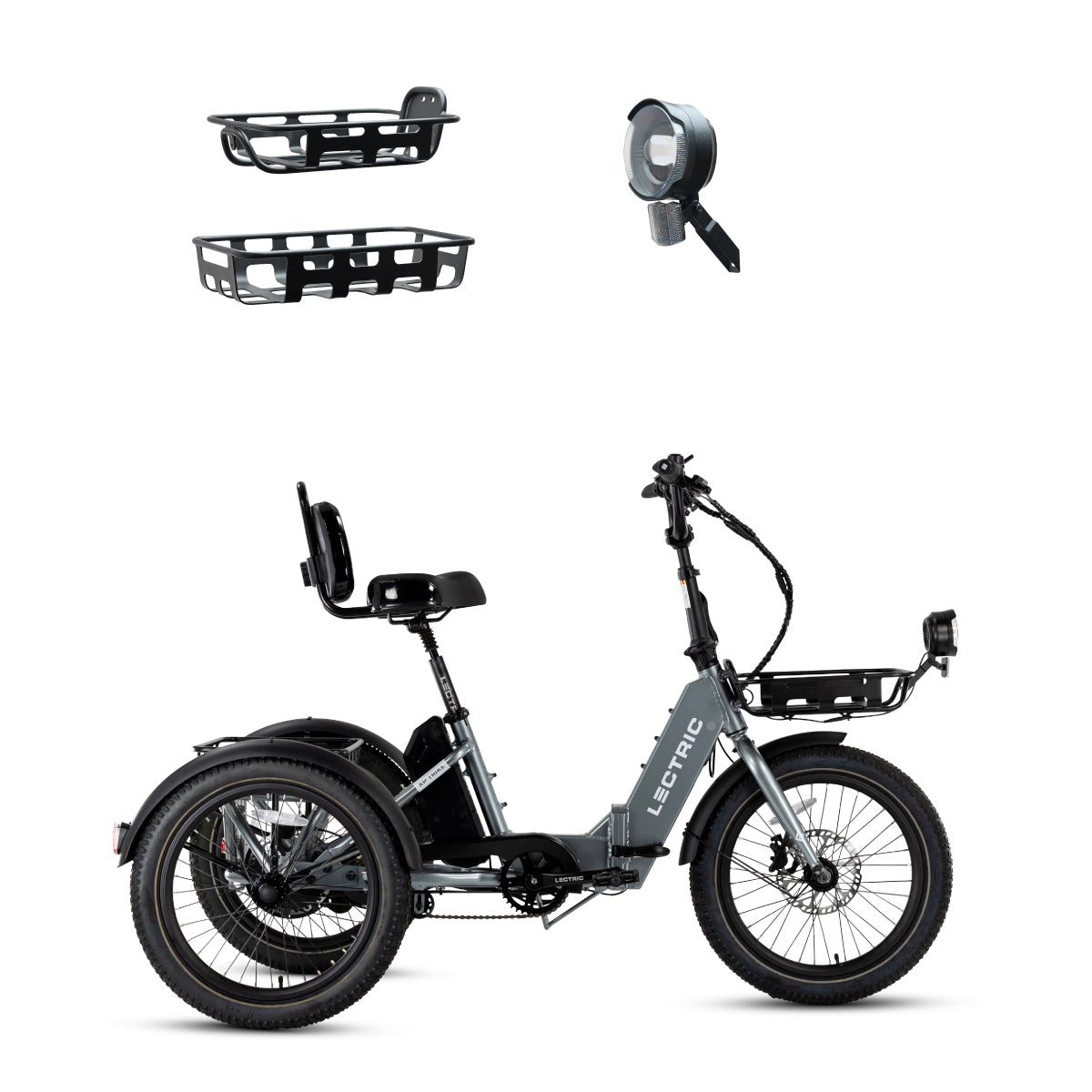

XP Trike + FREE Cargo Package, Suspension Seat Post, Elite Headlight ($365 Value)
XP Trike + FREE Cargo Package, Suspension Seat Post, Elite Headlight ($365 Value)
SHIPS WITHIN 1 WEEK
Certified to
UL 2849
One-year warranty
Free Shipping
Questions? Give us a call at (602) 715-0907

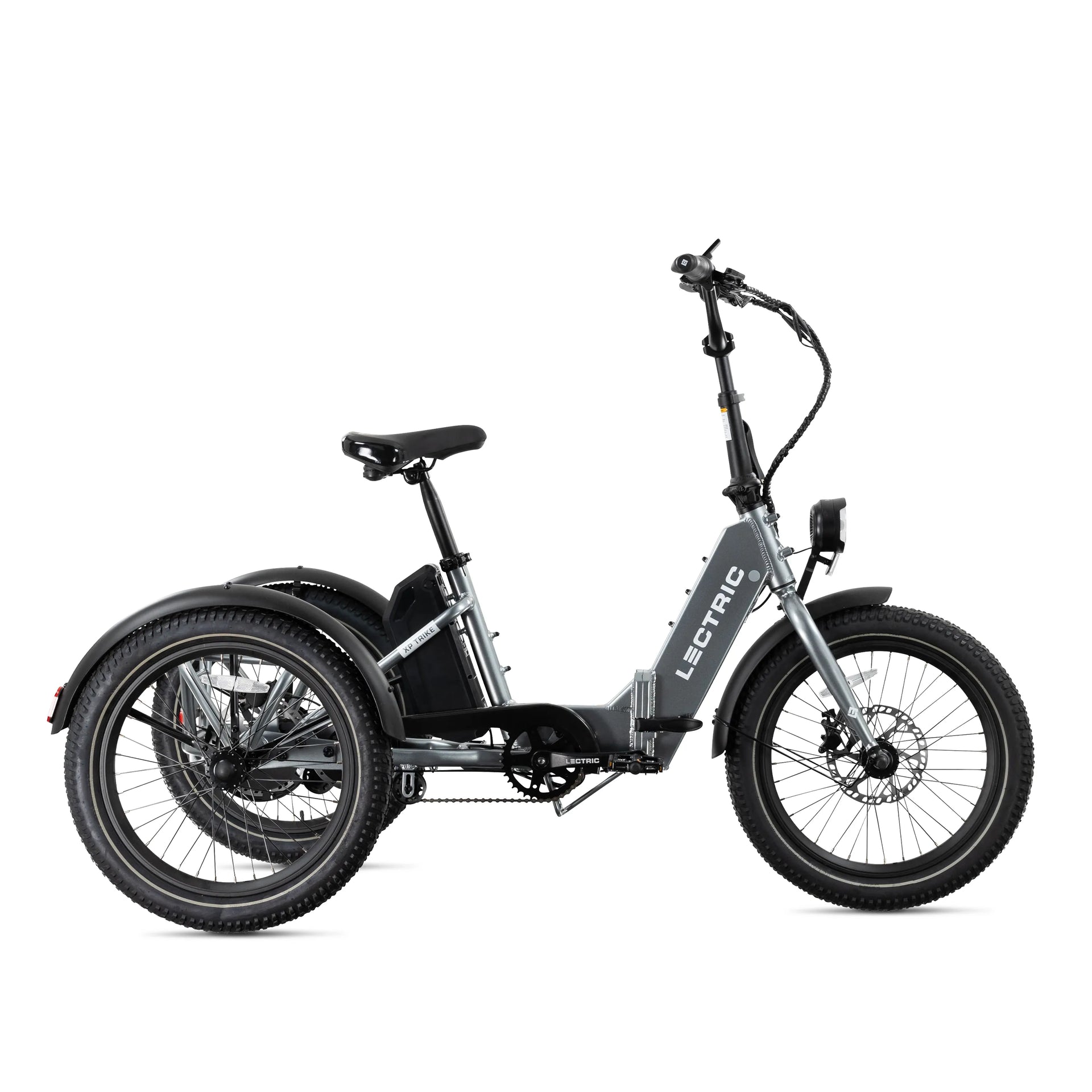

The Lectric XP™ Trike is the ultimate eXPerience for all. It accommodates a wide range of abilities and preferences with our lowest standover height ever of just 13.8 inches. As the industry's first fully foldable and fully assembled electric tricycle, The XP™ Trike includes the award-winning features our XP™ series eBikes demonstrate, plus a bigger battery, hydraulic brakes, and a third wheel. A sturdy rear hub motor setup with a differential axle provides a whopping 65NM of torque - accommodating even the heftiest of payloads without a problem.
Features
Size Guide
Bike Unfolded 63.5"L x 30.5"W x 43"H
Stand Over Height 13.8"
Handlebar Height 41.5"-44.75" (adjustable)

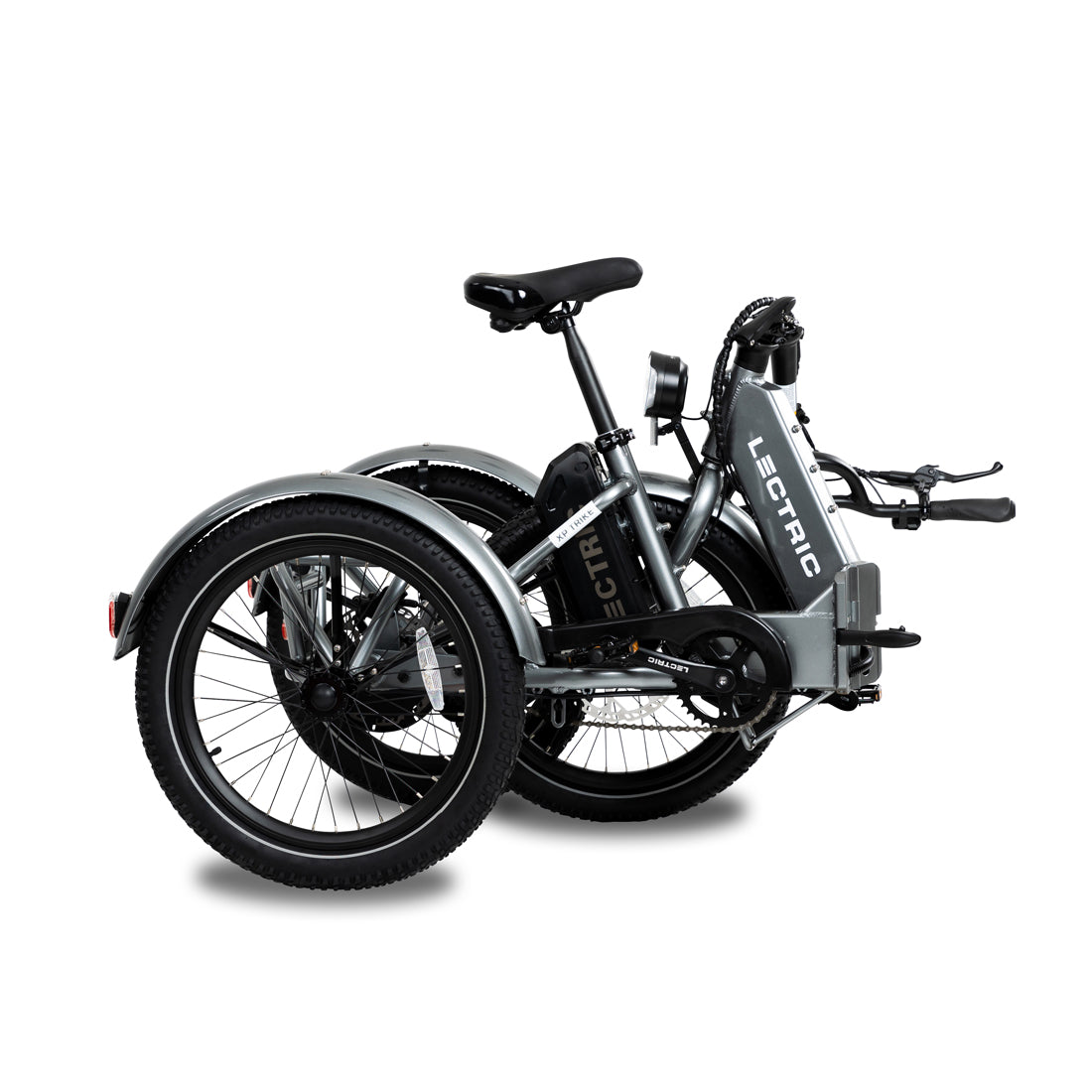

Bike Folded 38.5"L x 30.5"W x 30"H
Payload Capacity Max: 415 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 35 lbs, Max Rear Basket Weight 75 lbs.
Seat to Ground Max: 42” / Min: 30”
Handlebar Width 25"
Rider Height 4’10” - 6’4”
Rear Rack Length 8.9” fits Lectric Large Basket
Wheelbase 43.75”
Rider Inseam 22”-35” (in relaxed pedaling position)
Effective Top Tube 21.85”
Handlebar Reach 18.5” - 20”
Specifications
-
Weight
69.5 lbs total. With the battery removed, the XP™ Trike is just 62.5 lbs, making this is one of the most lightweight electric tricycles on the market.
-
Battery

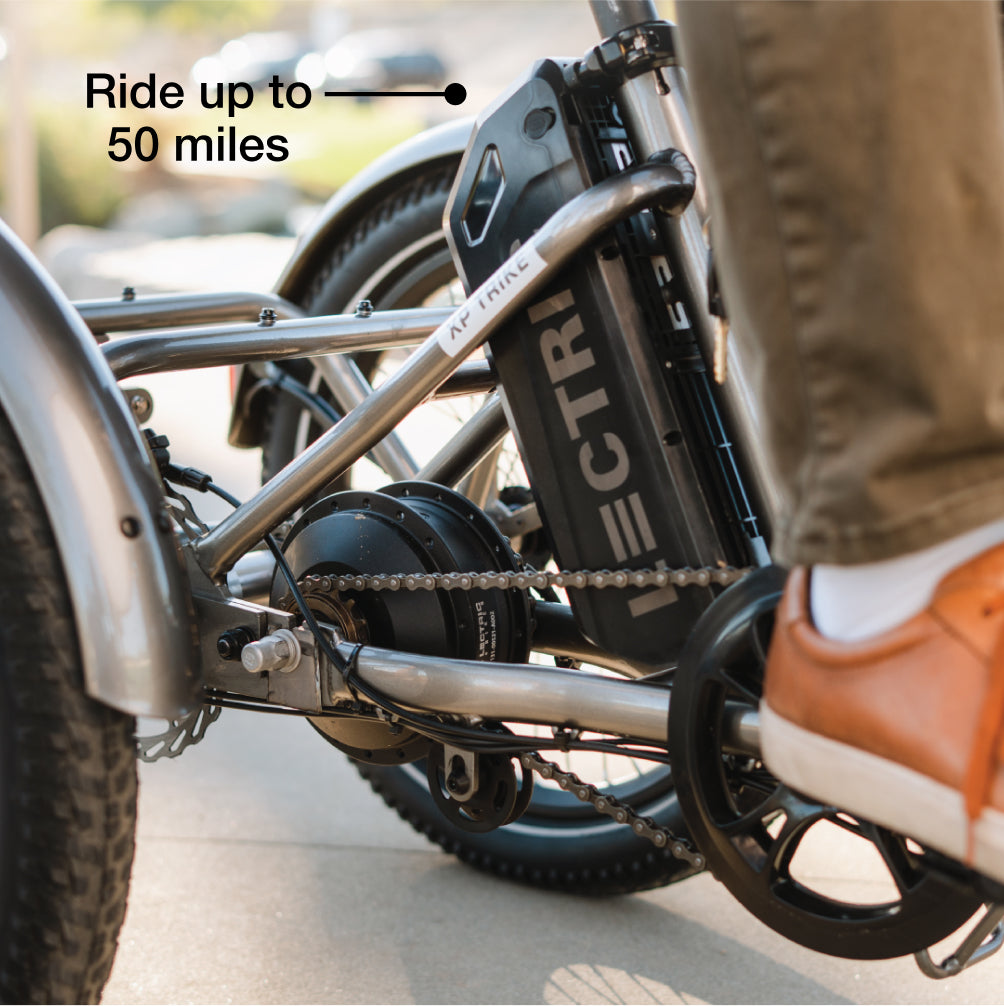

A removable 48V, 14Ah lithium-ion battery makes for a clean design while powering your ride for up to 60 miles on a single charge.*
-
Charging
An external charging port provides riders with the option to charge the eBike without removing the battery. Meanwhile, interchangeable spare batteries can be removed and installed in seconds, doubling your range.
-
Tires
Slim 20 x 2.6 inch tires allow you to turn on a dime. The sidewall features a stylish reflective strip, customized by Lectric.
-
Motor
A 500W nominal, 1092W peak planetary geared brushless motor achieves the perfect balance between torque and speed to each rear wheel.
-
Pedal Assist
Cadence sensor equipped with five levels of pedal assist to enhance the riding experience for all skill levels.
-
Throttle
Twist throttle delivers pure power on demand.
-
Drivetrain
36 x 16 tooth single speed drivetrain makes riding efficient and seamless.
-
Brakes
180mm brake rotors with a hydraulic system for the front wheel and rear axle. Parking brakes help you keep your trike secure while not in use.
-
LCD Display
A backlit, heads-up LCD display provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
-
Safety Lights

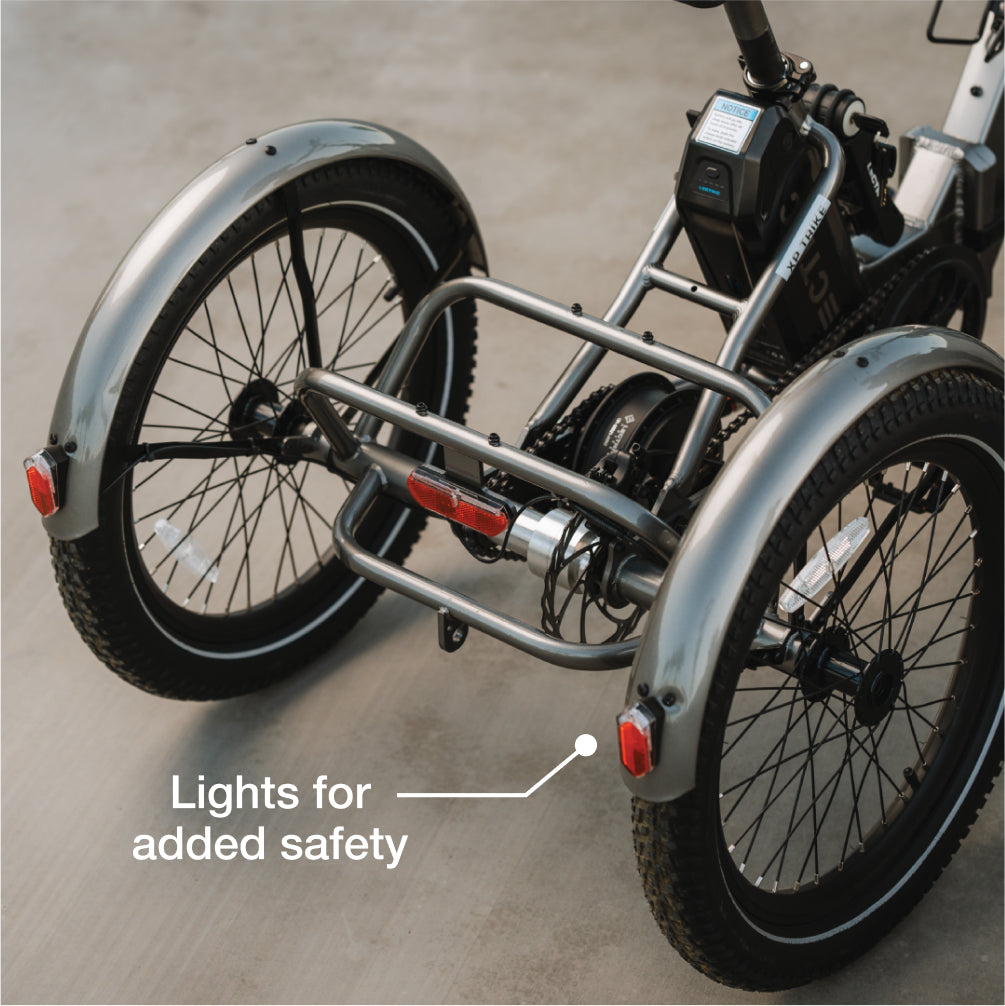

Integrated front and rear lights allow you to be seen at night and provide you with greater safety. As an added bonus, both rear fenders feature an integrated rear brake light.
-
Frame
Fully foldable 6061 aluminum makes the eBike lightweight and sturdy.
-
Front Fork
Rigid Steel Fork with a threadless headset.
-
Controller
20 Amp motor controller with built in heat sensors to eliminate burn-out.
-
Color
Graphite
-
Differential Axle
The 2 wheel drive, all wheel braking system is made possible by the open, dual-differential axle. Both the motor and the stationary rotor are centered on the axle, providing power and brakes to both rear wheels. This design ensures stability by creating a balanced center of gravity.
-
New Pedal Assist Programming
Programming for the new XP™ Trike allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting, instead of limiting the assistance by speed.
-
Default Mode
If you haven’t been on a bike in a while, the XP™ Trike comes with a power limiting feature to slow acceleration and limits max speed to 5 mph in PAS 1 and 2. Once you get comfortable you can unlock faster settings.
* Range can vary due to weight load, terrain, weather and other conditions.
What’s in the Box
- • Custom Lectric tires
- • Battery and Charger
- • Integrated Display
- • Steel Fenders
- • Integrated Elite headlight and (3) Tail lights
- • Cargo Package

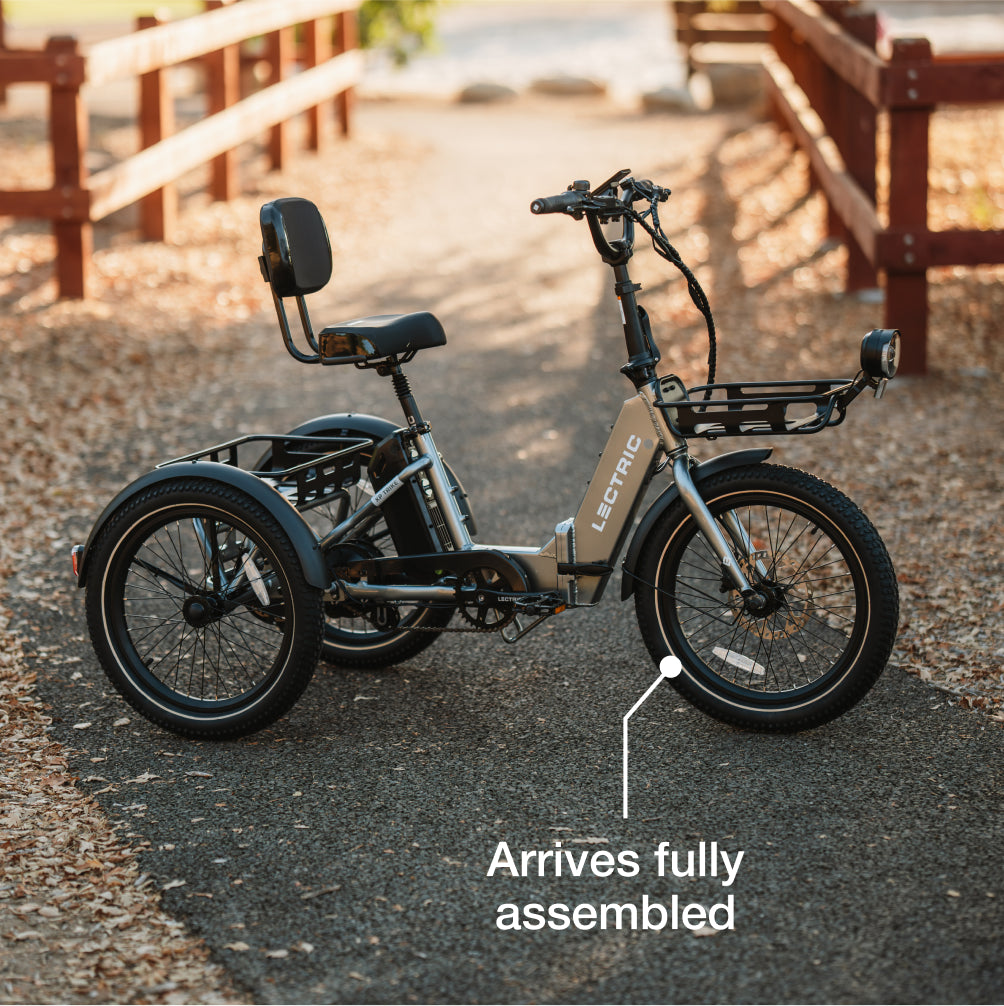

- • Delivered Fully Assembled
Manuals & Videos
Distance Range
Pedal-Assist
PAS | Controller Limit | Battery Range |
---|---|---|
1 | 2A | 60 miles |
2 | 5A | 50 miles |
3 | 9A | 40 miles |
4 | 14A | 30 miles |
5 | 20A | 20 miles |
Throttle Only
PAS | Controller Limit | Battery Range |
---|---|---|
1 | 2A | 55 miles |
2 | 5A | 45 miles |
3 | 9A | 35 miles |
4 | 14A | 25 miles |
5 | 20A | 15 miles |
*All tests were performed with flat ground, with the tires at ~30 PSI. PAS range and speed tested as a Class 2 eBike. There were few starts and stops and total payload was about 180lbs. Controller Limit measured A=Amps.
