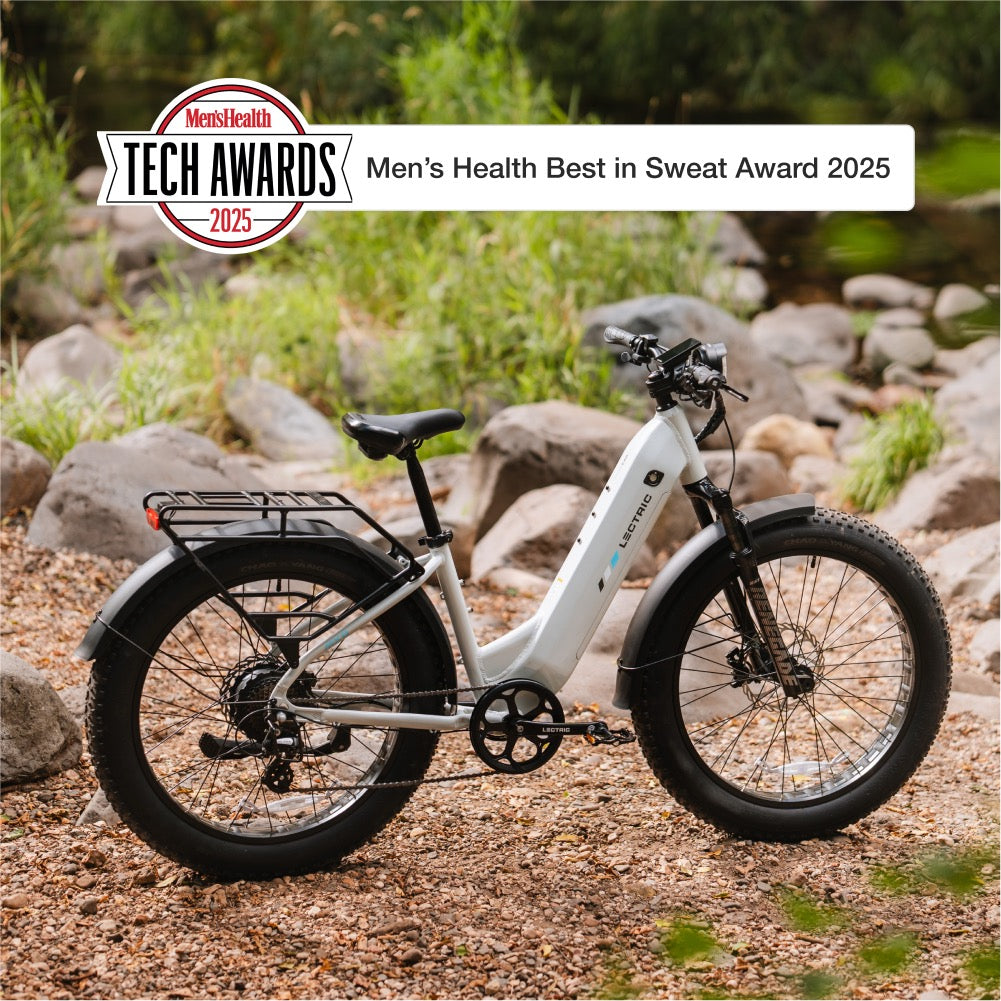

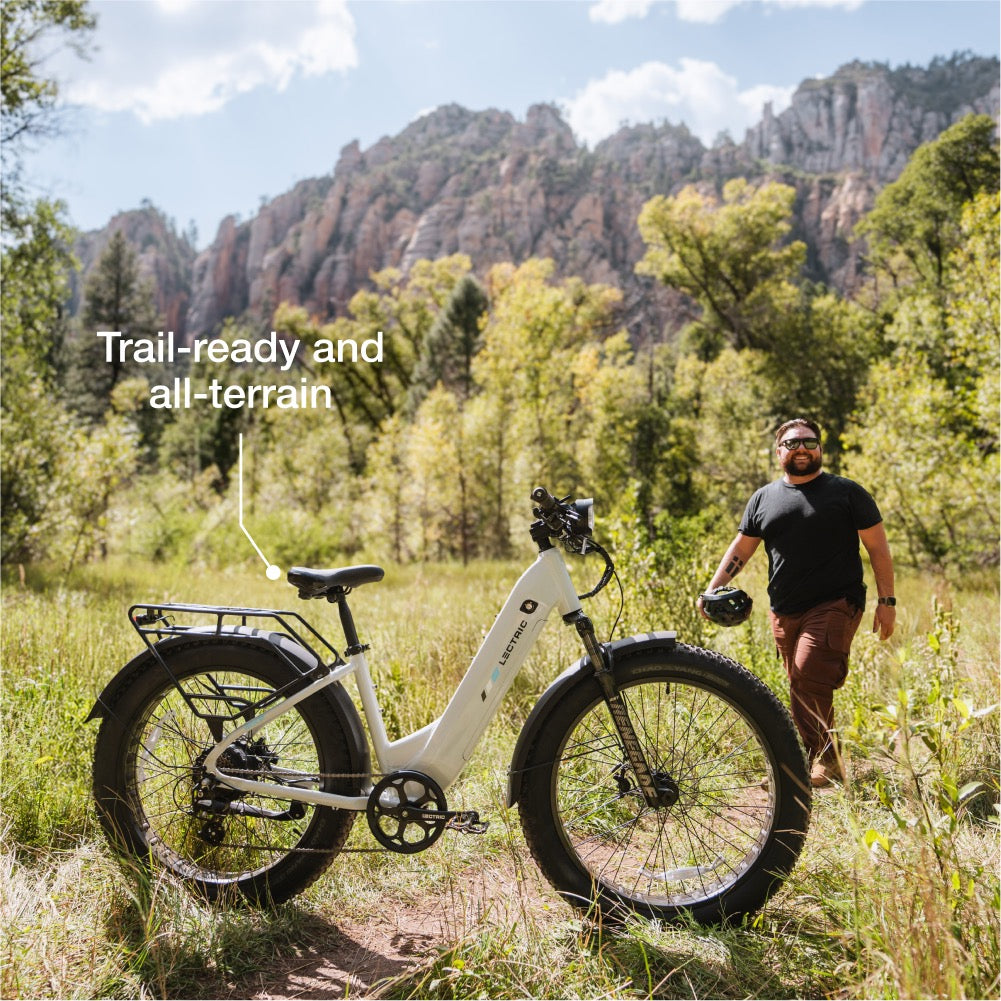

The XPeak 2.0 is a newly upgraded version of the trail-ready, all-terrain eBike. Tested to the most aggressive safety standards for off-road eBikes (eMTB), and named by Men's Health as a "Best of Sweat" winner in the 2025 Tech Awards, the XPeak 2.0 now comes standard with an industry-leading torque sensor that provides an exceptional riding experience with intuitive and controlled power delivery at each pedal stroke. Combined with the 750-watt Stealth M24 motor (1310 Peak) for a powerful yet hushed motor experience, the XPeak 2.0 delivers the muscle and speed to take on any terrain as a Class 1, 2, or 3 eBike. Additional upgrades include a newly designed hydroformed frame, a larger 203mm front disc brake rotor for maximum stopping power, an integrated color display, lock-on grips, and an 8-speed Shimano drivetrain.
Features
Size Guide
Bike Dimensions 75"L x 18"W x 43"H
Bike Dimensions with Front Wheel removed 60"L x 10"W x 32"H
Stand Over Height 19.5"
Handlebar Height 42"
Bike Weight 64.5 lbs w/o battery.
Bike Weight with Front Wheel removed 57.2 lbs.
Payload Capacity Max: 330 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Rear Rack Weight 60 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Min: 33” / Max: 45”
Handlebar Width 23.6"
Rider Height 5’2” - 6’3”
Handlebar Reach 20” - 23”
Specifications
-
Pedal-Assist
Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.**
-
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
-
Motor Controller
A 24 amp controller swiftly distributes power to the motor and is IP-65 rated and potted for weather proofing and thermal management.
-
Motor
A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. New Stealth M24 technology is 400% quieter*, delivering a hushed motor experience without sacrificing power.
-
Semi-Integrated Battery
A removable 48V 20Ah lithium-ion battery certified to UL 2271, integrated on the down tube of the frame with a color-matched plate, makes for a clean and easily-accessible design.† The XPeak is also certified to UL 2849.
-

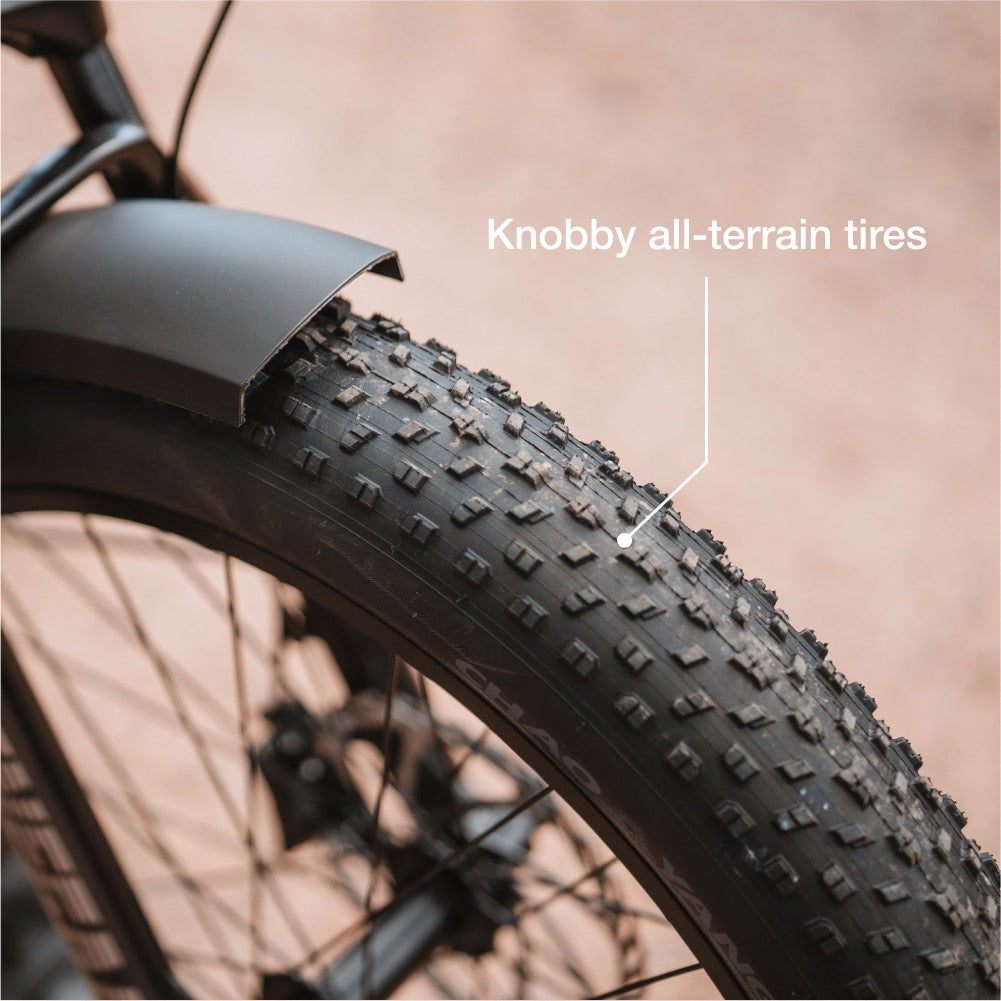

Fat Tires
Puncture-resistant 26” x 4” knobby tires can handle any terrain with ease. Slime is installed to prevent flat tires at no additional cost.
-
Suspension Front Fork
Adjustable RST Renegade suspension fork with up to 80mm of travel provides shock absorption for a smooth ride.
-

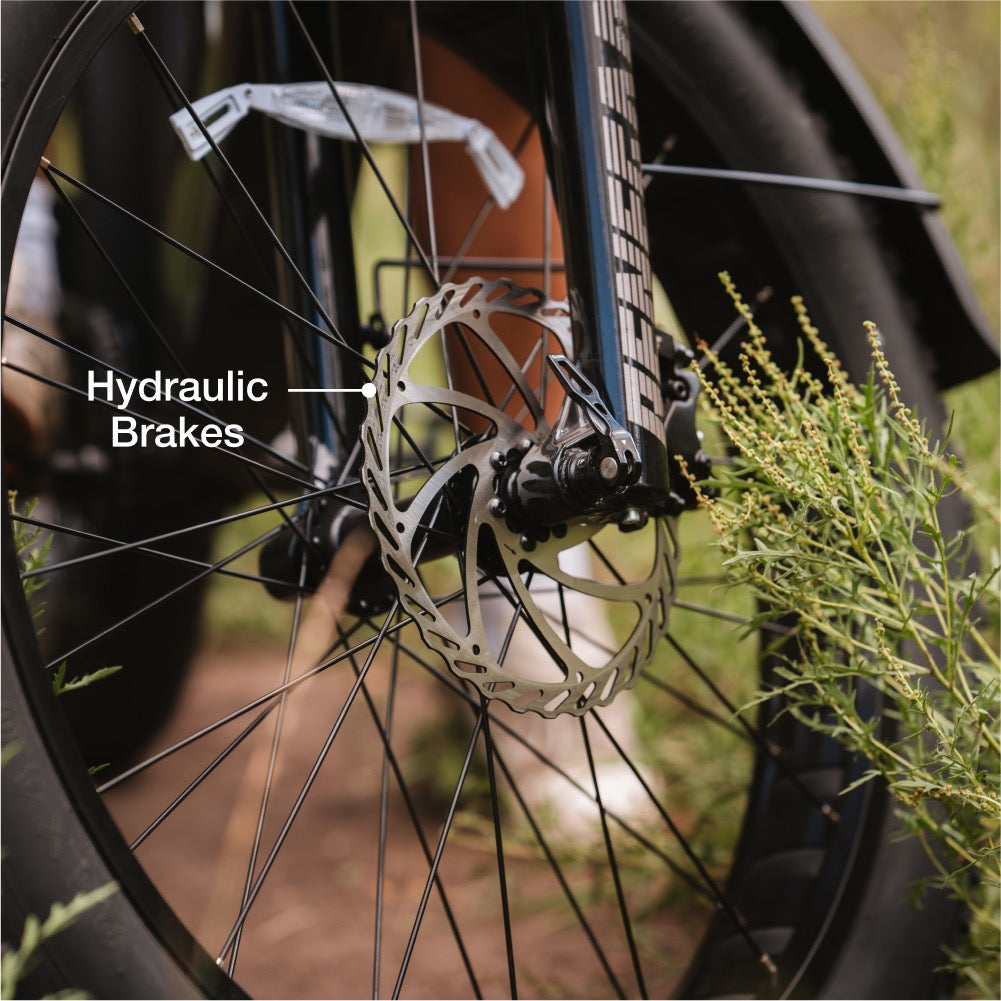

Brakes
Hydraulic mineral oil brakes paired with a 203mm front rotor and a 180mm rear rotor (1.8mm thick) offer ultimate stopping power and peace of mind in wet or dry conditions.
-
Lectric PWR+™
Lectric's new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting. Learn more about PWR here.
-
PAS Torque Sensor
A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
-
Drivetrain
11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
-
Crankset
Forged aluminum, 46-tooth chainring is the perfect ratio for effortless 26-inch wheel pedaling.
-
Chain
The XPeak's KMC Z8.1 steel chain is equipped with anti rust protection and offers consistent tension and secure performance throughout your ride.
-

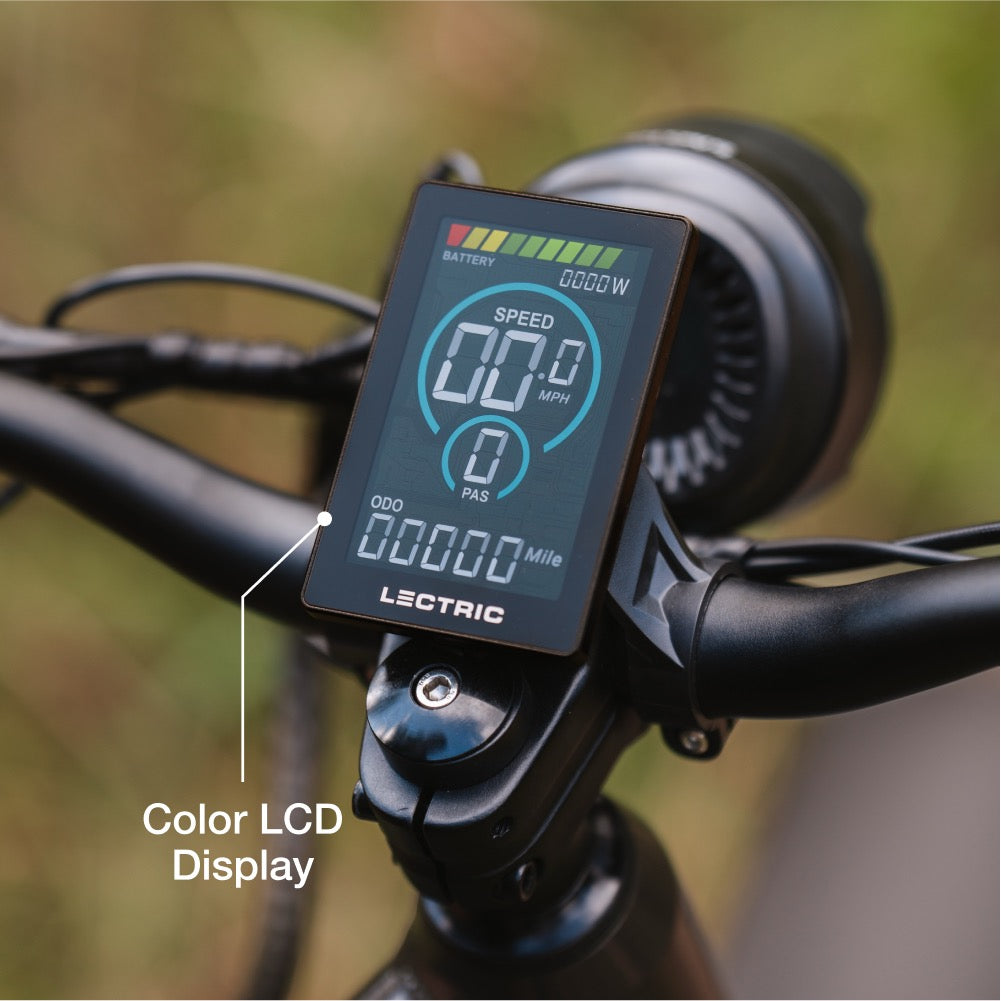

LCD Display
A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
-
Safety Lights
An integrated safety system, featuring a headlamp and taillight powered by the battery allows you to be seen at any time of day.
-
Charging
An auxiliary charging port near the bottom bracket provides riders with the option to charge the eBike without removing the battery. The XPeak comes standard with a 2amp charger for 8-10 hour charging but a 5amp Fast Charger can be purchased separately to speed up charging by 250%.
-
Telescoping Seat Post
An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.
-
eMTB Safety Tested
A US-based bicycle testing lab put the XPeak through the rigorous eMTB safety standard testing process to prove the frame, fork, stem, and handlebars can handle off-road conditions ride after ride. The XPeak is rated to ISO 4210-10 eMTB.
-
Thru Axle
The front wheel features a Thru Axle wheel attachment system for a quick and easy installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for an easy and light-weight transport.
-
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
-
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
-
Saddle
A custom-designed saddle compliments a sporty look while adding comfort so you can ride longer.
-
Kickstand
A heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.
-
Accessory Mounting Points
The XPeak frame features multiple mounting points throughout the eBike for various accessory combinations.
-
Hidden Cable Routing
The down tube of the frame houses the main cables for a premium experience at no extra cost.
-
Frame

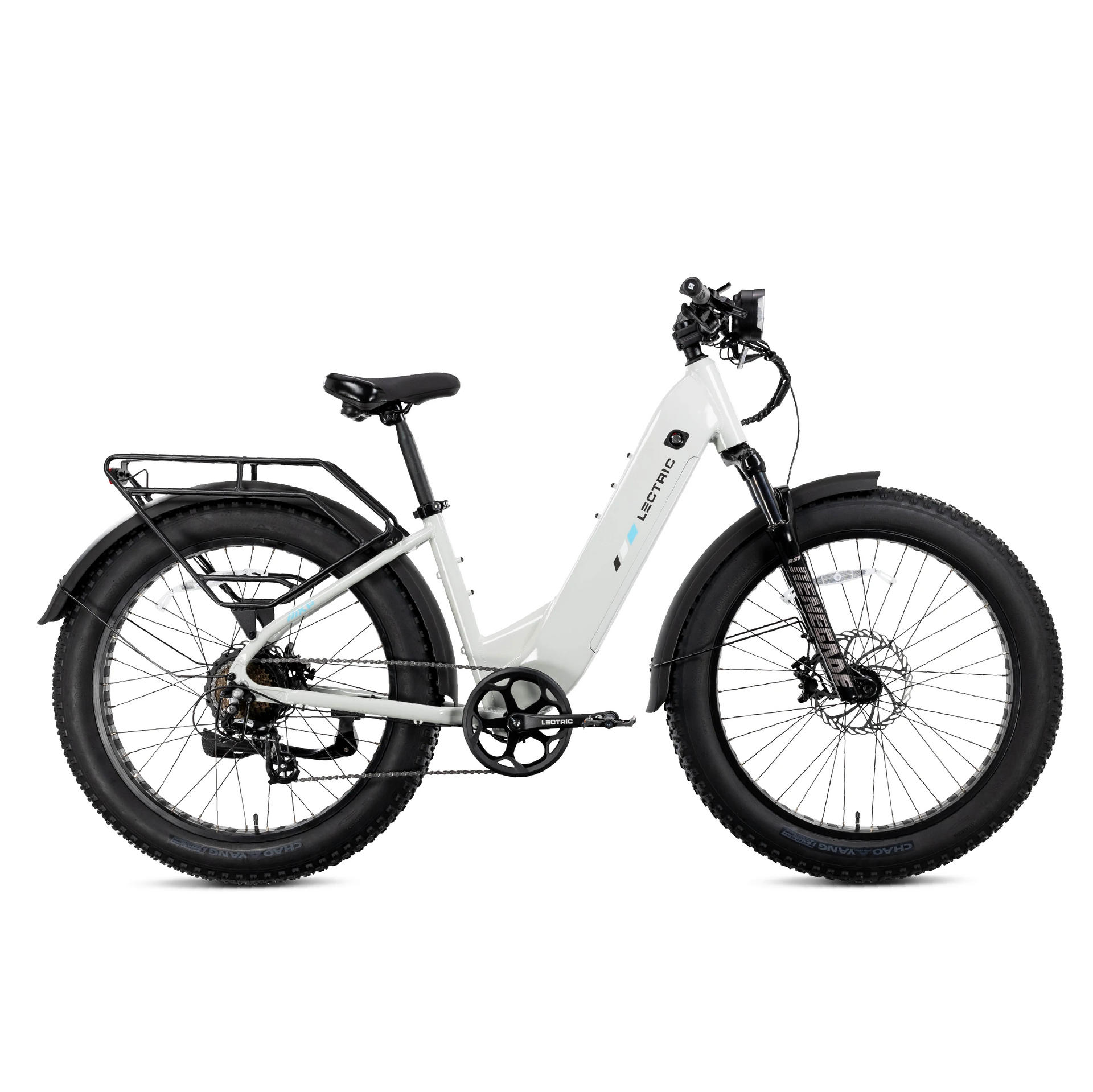

The XPeak frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum is available in 2 different frame styles; a diamond High-Step and an easily mountable Step-Thru.
-
Color
Stratus White
-
Weight
With the battery removed, the XPeak 2.0 is just 64.5 lbs. The battery weighs 10.5 lbs.
-
Green Packaging
Packaging components are biodegradable and easily recyclable.
-
Assemble In Less Than Five Minutes
Simply attach the quick-release pedals and install the front wheel via the thru axle, then secure the handlebars with 4 screws.
-
Safety Certified
The Lectric XPeak is certified to UL 2849. Additionally, the XPeak's lithium-ion battery is certified to UL 2271.
* As compared to previous 750W Lectric motors. ** Where permitted by state law. † Click here for information on battery safety.
What’s in the Box
- • Fat tires
- • RST Renegade Suspension Front Fork
- • Battery and Charger
- • Integrated LCD Display
- • Integrated Front Light and Tail Light
