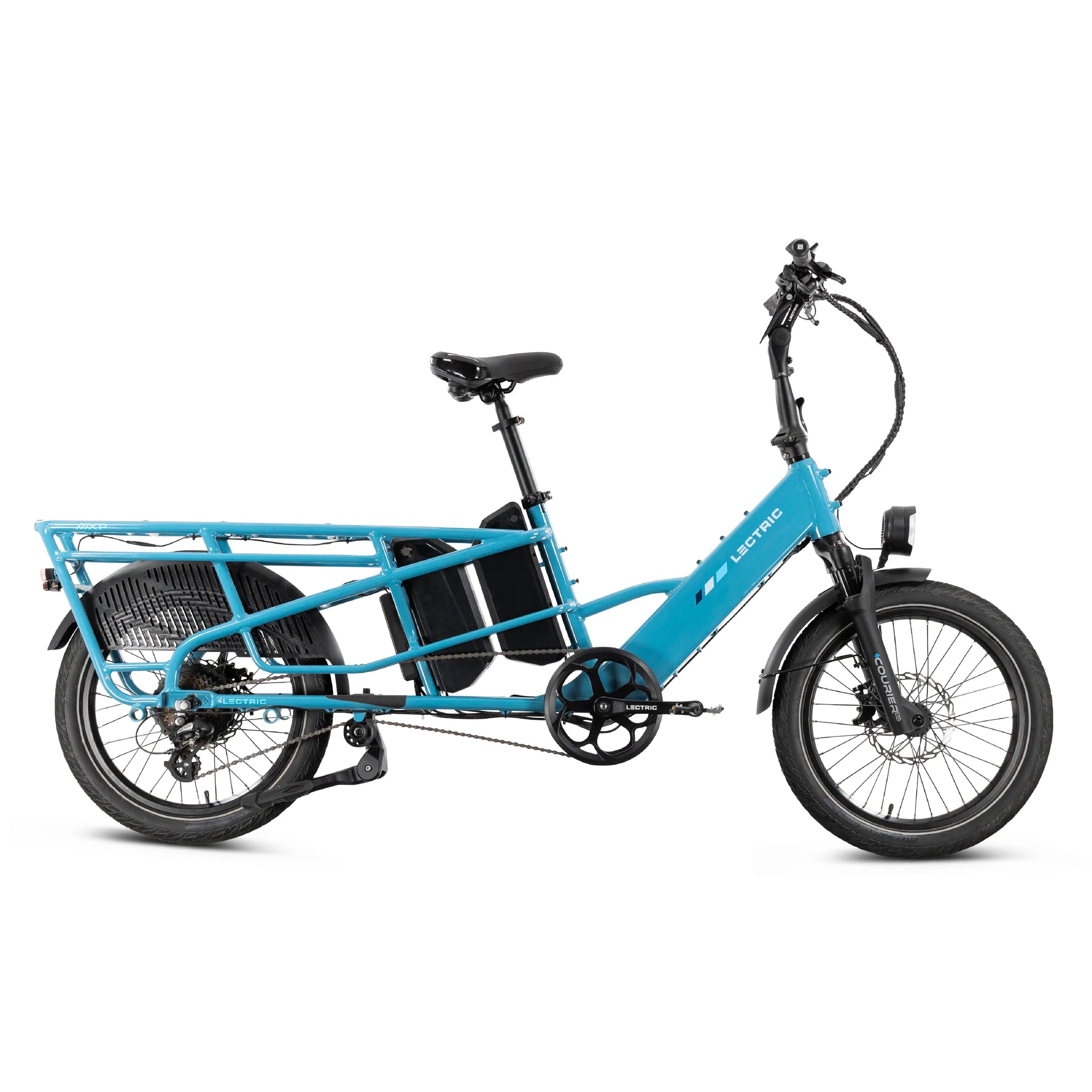

XPedition 2.0 Raindrop Blue Dual-Battery eBike
XPedition 2.0 Raindrop Blue Dual-Battery eBike
PREORDER: SHIPS WEEK OF DECEMBER 30TH
Certified to
UL 2849
One-year warranty
Free Shipping
Questions? Give us a call at (602) 715-0907
America's best-selling cargo eBike has been reimagined with an all-new design. Introducing the XPedition 2.0, Lectric’s most advanced cargo carrier yet. Engineered to conquer even the steepest hills and carry up to 450 lbs of load, this eBike is versatile enough for a wide range of riders. Now upgraded with a torque sensor to deliver an unparalleled pedal assist experience, an 8-speed Shimano shifter, 1,310W peak motor, color LCD display, and a longer frame with updated tubing. Enjoy a smoother ride with a front suspension fork, and travel farther with up to 35Ah of battery life. Paired with a line of tailor-made accessories to elevate your riding experience!
Features
Size Guide
Bike Unfolded 77"L x 17"W x 46"H
Stand Over Height 21"
Handlebar Height 32"-49" (adjustable)
Bike Folded 70"L x 10"W x 30"H
Payload Capacity Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
Rear Rack Payload Capacity Max: 300 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Max: 49” / Min: 32”
Handlebar Width 25"
Rider Height 4’11” - 6’5”
Rear Rack 36.7”L x 6.8”W (300lb capacity)
Handlebar Reach 17” - 24.5”
Specifications
-
Pedal-Assist
Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.*
-
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
-
Motor
A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before.
-
Motor Controller
24 amp externally mounted controller is IP-65 rated and potted for weather proofing and heat management.
-
Battery
Two removable 48V, 13Ah (combined 26Ah) lithium-ion batteries certified to UL 2271 makes for a clean design while powering your ride for up to 120 miles on a single charge.** The XPedition is also certified to UL 2849.
-
Smart-Draining Technology
A dual-battery system coupled with a battery isolator will drain 2 batteries at the same time allowing you to stay at higher voltage longer & reach up to 170 miles, respectively.**
-
Rear Rack
A long rear rack integrated into the bike frame holds up to 300lbs and features a specially designed bar for mounting various accessory combinations. The rear rack also has 2 bulit-in mounting windows to easily install childrens seats & more.
-
Suspension Front Fork
The Courier 50 is a custom dual-spring suspension fork with up to 50mm of travel that provides shock absorption for a smooth and comfortable ride. Independent pre-load adjustments in each fork leg allow you to tailor each ride to your preference based on payload capacity and weight distribution.
-
LCD Display
A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
-
Tires
Puncture-resistant 20” x 2.5” street tires make for a smoother ride with ease of control at hand. Slime is installed to prevent flat tires- at no additional cost.
-
Lectric PWR+™
Lectric's new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting. Learn more about PWR here.
-
PAS Torque Sensor
A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
-
Drivetrain
11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
-
Crankset
Forged aluminum, 52-tooth chainring is the perfect ratio for effortless 20-inch wheel pedaling.
-
Chain
A KMC Z8 steel chain paired with an idler pulley offers consistent tension and secure performance throughout your ride.
-
Brakes
Ultimate stopping power with hydraulic mineral oil brakes paired with 180mm rotors (2.2mm thick) offers peace of mind in wet or dry conditions.
-
Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated rear light powered by the internal battery allows you to be seen at any time of day.
-
Turn Signals
Alert drivers, riders, and people nearby by indicating which direction you are headed with our new turn signals. Simply use the left or right arrows on the display control pad to trigger a blinking cadence on one side of the rear light.
-
Folding Dual-Leg Kickstand
A sturdy dual-leg kickstand with a 15+ inch spread located near the bottom bracket ensures the most balanced position for easy loading***. Pushing forward allows you to start riding without having to manually put the kickstand up with precious cargo.
-
Fenders
Polypropolene Fenders protect you and your ride from debris. The rear fender features an integrated side-pane wheel shroud to shield cargo and passengers from the eBikes rotating components.
-
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
-
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
-
Saddle
A custom-designed saddle compliments a sporty look while adding comfort so you can ride longer.
-
Dual Seat Post
An adjustable and removable seat post with two different expansion points allows riders to reach a wide range of heights while maintaining comfort and stability.
-
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
-
Thru Axle
The front wheel features a quick-release Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability.
-
Folding Capabilities
A foldable handlebar stem and adjustable seat height allows the XPedition to slide into compact spaces. Remove the pedals, seatpost, and front wheel in minutes for an easy and light-weight transport.
-
Weight
Total bike weight with two 13Ah batteries installed is 82.4 lbs.
-
Charging
An external battery allows riders to charge the eBike without removing the battery. An additional battery can be added for increased range. Meanwhile, interchangeable spare batteries can be removed and installed in seconds, doubling your range.
-
Hidden Cable Routing
A hollow top tube frame houses the main cables for a premium experience at no extra cost. Cables that may need to be serviced overtime are easily accessible and mounted to the underside of the frame.
-
Frame
The XPedition 2.0 frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum features multiple mounting points throughout the eBike for various tool-free accessory combinations!
-
DIN Tested & Rated
A US-based bicycle testing lab put the XPedition through the rigorous DIN standard testing process to prove the frame and fork can handle a 450lb maximum payload ride after ride. The XPedition is rated to DIN 79010:2020-02.5.9.5.2.
-
Green Packaging
Packaging components are biodegradable and easily recyclable.
-
Color
Raindrop Blue
-
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the quick-release thru axle.
-
Safety Certified
The Lectric XPedition 2.0 is certified to UL 2849. Additionally, the XPedition's lithium-ion batteries are certified to UL 2271.
* Where permitted by state law. ** Range can vary due to weight load, terrain, weather and other conditions. *** You MUST hold onto the Lectric XPedition whenever loading cargo and/or a passenger. The kickstand is not designed to be used for loading cargo. Do not assume the bike is stable and balanced when using the kickstand. Always hold onto the bike when cargo is being loaded, in place, or attached to the bike.
What’s in the Box
- • Integrated Rear Rack
- • Fenders
- • (2) Batteries and (1) Charger
- • Integrated Display
- • Integrated Front light and Tail light
- • Digital User Manual
